Lithium Battery Packs for Surveillance Equipment

This rechargeable lithium battery pack is designed for indoor and outdoor security surveillance devices, including WiFi cameras, 4G LTE solar cameras, PTZ dome cameras, video doorbells, and off-grid monitoring systems.

Available in 5V, 7.4V, and 12V versions, it supports compatible adapter charging and matched solar charging configurations for surveillance applications in residential, commercial, agricultural, and remote outdoor environments.

Surveillance Battery Overview

Lithium battery pack for security surveillance cameras

Feature	Details
Application	WiFi cameras, 4G LTE solar cameras, PTZ dome cameras, video doorbells, and off-grid surveillance systems
Voltage Options	5V, 7.4V, and 12V
Battery Chemistry	Lithium-ion or LiFePO4, depending on the selected model
Protection	BMS protection against overcharge, over-discharge, overcurrent, short circuits, and over-temperature, according to model configuration
Charging	Compatible adapter charging or a matched solar charging system
Customization	Custom capacity, connectors, cable length, housing, and OEM logo; customized pack MOQ: 500 pcs

Surveillance Battery Specifications

Available in 5V, 7.4V and 12V configurations, these lithium battery packs suit different surveillance devices. Match the battery output voltage and polarity to your camera's requirements.

Charging voltage, discharge current, BMS protection and operating temperature depend on the selected model and battery chemistry. For 12V packs, full-charge and cut-off voltages differ between Li-ion and LiFePO4. Always use a compatible charger or solar charge controller and verify the model's specifications before use.

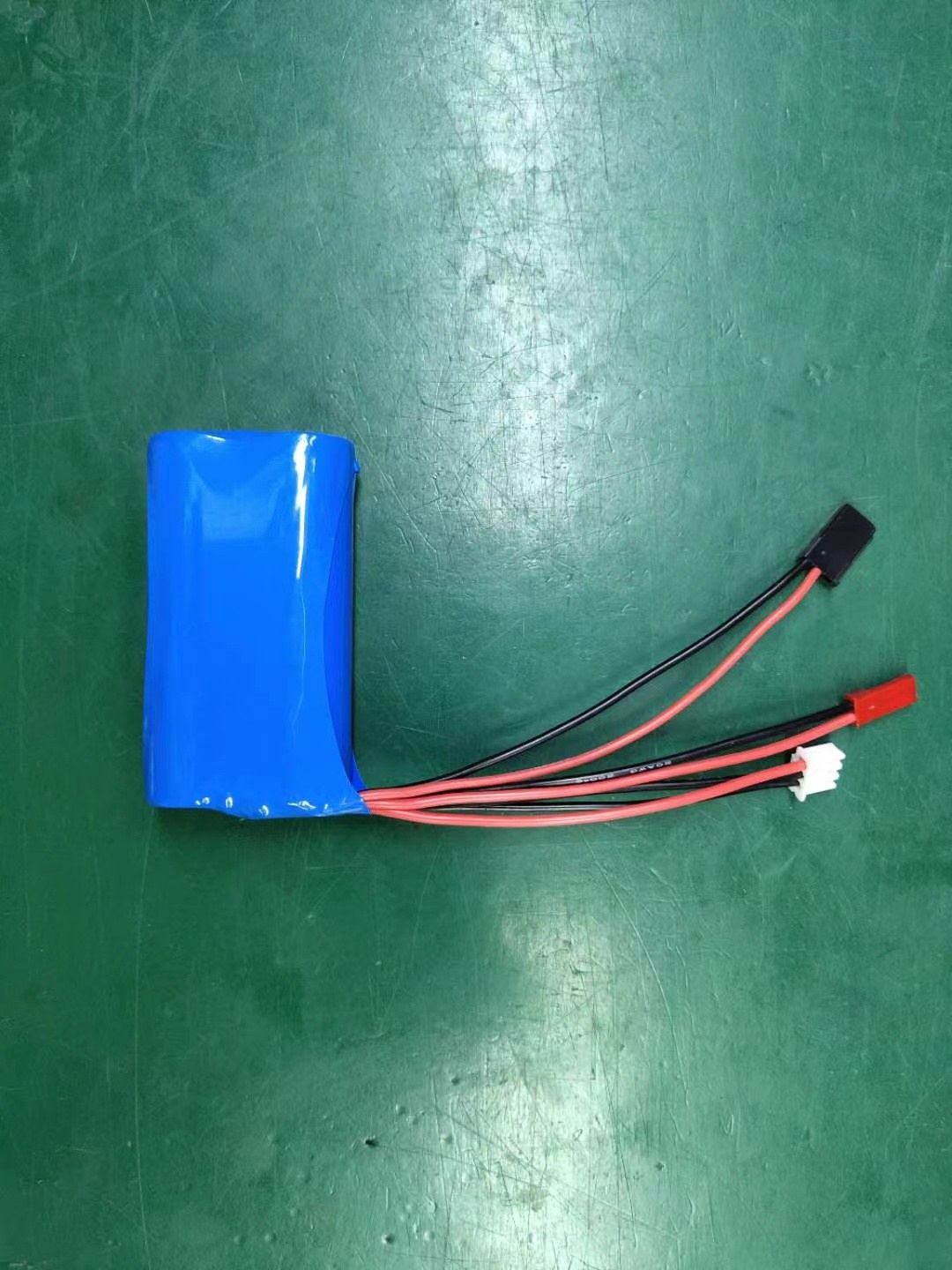

Rechargeable lithium battery pack for surveillance cameras

Specification	5V	7.4V	12V
Structure	1S Li-ion	2S Li-ion	3S Li-ion / 4S LiFePO4
Nominal Voltage / Output	3.7V cell, 5V output	7.4V	12V
Full Charge	4.2V per cell	8.4V	12.6V / 14.6V*
Discharge Cut-off	2.75V per cell	6.0V	9.0V / 10.0V*
Typical Application	WiFi cameras, doorbells	4G mini PTZ, solar cameras	Bullet cameras, PTZ domes
Charging	Compatible USB / solar	8.4V charger / solar	Matched charger / solar
Operating Temperature	Model-specific; check datasheet

IMPORTANT REMINDERS

Follow these guidelines when selecting and using a surveillance battery pack to ensure voltage compatibility, reliable operation and proper charging.

Check Input Voltage

Confirm your camera's rated input voltage and polarity before connecting the battery pack. Incorrect voltage may damage the device.
Estimate Runtime

Actual runtime depends on camera power consumption, infrared (IR) activity, network use and ambient temperature.
Confirm Battery Specifications

Check the selected model's cell type, capacity and discharge rating to ensure it meets your camera's power requirements.
Use a Compatible Charger

Choose a charger or solar charging controller compatible with the battery's voltage and chemistry. Avoid incompatible charging setups.

BATTERY APPLICATIONS

Rechargeable lithium battery packs provide flexible power for indoor and outdoor surveillance devices, including wireless cameras, solar monitoring systems and remote security equipment.

WiFi Security Cameras

Power indoor and outdoor wireless cameras for home security, property monitoring and everyday surveillance.
4G LTE Solar Cameras

Support off-grid monitoring in areas with limited grid access, including farms, orchards, fish ponds and remote properties.
PTZ Dome Cameras

Supply power to compatible pan-tilt-zoom cameras used for wide-area monitoring and site security.
Video Doorbells

Provide battery power for compatible home doorbell cameras used to monitor entrances and capture visitor activity.
Remote Site Monitoring

Support surveillance at construction sites, agricultural facilities and other outdoor locations without a stable grid power supply.

SURVEILLANCE BATTERY SELECTION GUIDE

Voltage Matching

5V output for compatible WiFi cameras and doorbells
7.4V for compatible 2S Li-ion systems
12V for compatible bullet and PTZ cameras
Match rated voltage and polarity

Capacity and Runtime

Select capacity based on camera power consumption
Consider IR night vision and 4G usage
Higher capacity can extend runtime
Check continuous discharge rating and expected runtime

Charging Compatibility

Match charger voltage to battery requirements
Use a charger compatible with battery chemistry
Choose a suitable solar charge controller
Check connector and polarity before charging

Operating Environment

Check the rated operating temperature
Consider seasonal outdoor temperature changes
Select housing for the installation environment
Ensure suitable ventilation and water protection

CUSTOM SURVEILLANCE BATTERY PACKS

Vodno supports customized lithium battery packs for indoor and outdoor surveillance equipment, including WiFi cameras, 4G LTE solar cameras, PTZ cameras, video doorbells, and off-grid monitoring systems.

Customization options include battery capacity, connectors, cable length, housing, OEM logo, and project-specific parameters. The minimum order quantity for customized packs is 500 pcs. For safe operation, match the battery to the equipment's power requirements and select suitable ventilation and waterproof housing where needed.

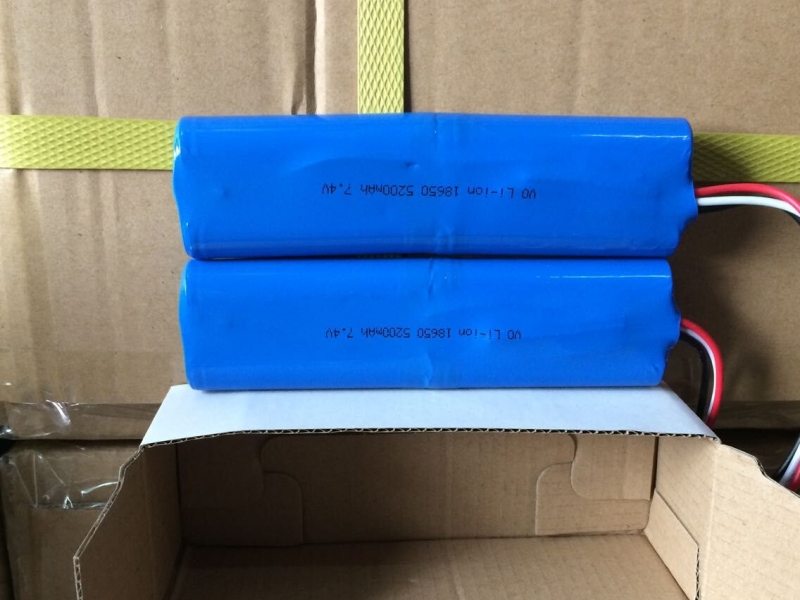

Custom lithium battery pack for surveillance equipment

ADVANTAGE

Vodno provides reliable lithium battery packs for security cameras and surveillance systems, supporting stable power and flexible charging for indoor and outdoor monitoring.

Instant Inquiry

High-Quality Cells

Grade A lithium cells for reliable capacity and consistent performance
Reliable Power Output

Stable power supply for compatible surveillance devices
Smart BMS Protection

Protection against overcharge, over-discharge and short circuits
Outdoor Adaptability

Supports outdoor monitoring within the specified temperature range
Flexible Charging

Supports compatible adapter and solar charging options

WHY CHOOSE VODNO SURVEILLANCE EQUIPMENT BATTERY?

Reliable battery power is essential for security cameras and surveillance systems, especially in remote locations where frequent battery replacement or access to grid power may be difficult. Cell quality, power management, safety protection and charging compatibility all influence battery performance in daily monitoring.

Vodno provides lithium battery packs for WiFi cameras, 4G surveillance devices, PTZ cameras and off-grid monitoring systems, with multiple voltage options and customizable configurations to meet different equipment requirements.

High-Capacity Cells and Quality Control

Grade A lithium cells with consistent capacity performance
Low capacity attenuation during repeated charge and discharge cycles
High- and low-temperature testing, continuous discharge testing and aging checks
Capacity selection based on device power consumption and runtime requirements

Stable Power and Intelligent Management

Voltage configuration matched to the surveillance device's input requirements
Designed to provide stable power for compatible monitoring equipment
Low-power sleep mode for reduced standby consumption, where supported
Runtime depends on battery capacity, camera load, infrared use and ambient temperature

Battery Safety and Protection

BMS protection against overcharge and over-discharge
Overcurrent and short-circuit protection
Over-temperature protection where supported by the selected model
Use a compatible charger to help prevent electrical damage

Outdoor Use and Flexible Charging

Battery options for compatible indoor and outdoor surveillance devices
Operating temperature options according to battery specifications
Adapter or solar charging configurations, subject to model compatibility
Custom capacity, connectors, cable lengths, housing and OEM logo
