Electric Golf Cart Battery

Powering Every Journey with Reliable Electric Golf Cart Batteries!
Instant Inquiry
Electric Golf Cart Powered by Lithium Battery
Vodno provides reliable golf cart battery solutions designed to deliver consistent, long-lasting power for electric golf carts, LSVs and utility vehicles. Built for everyday mobility and demanding outdoor applications, these batteries combine stable performance with low-maintenance operation.
Available in 36V, 48V, 60V and 72V configurations, our golf cart batteries are designed to support a wide range of vehicle platforms, including mainstream brands such as Club Car, EZGO, Yamaha and ICON.
Using Grade A cells and intelligent BMS protection, Vodno golf cart batteries provide stable voltage output, low self-discharge and strong temperature resistance. Compared with traditional battery systems, they offer longer service life, faster charging and maintenance-free operation.


Golf Cart Battery Overview

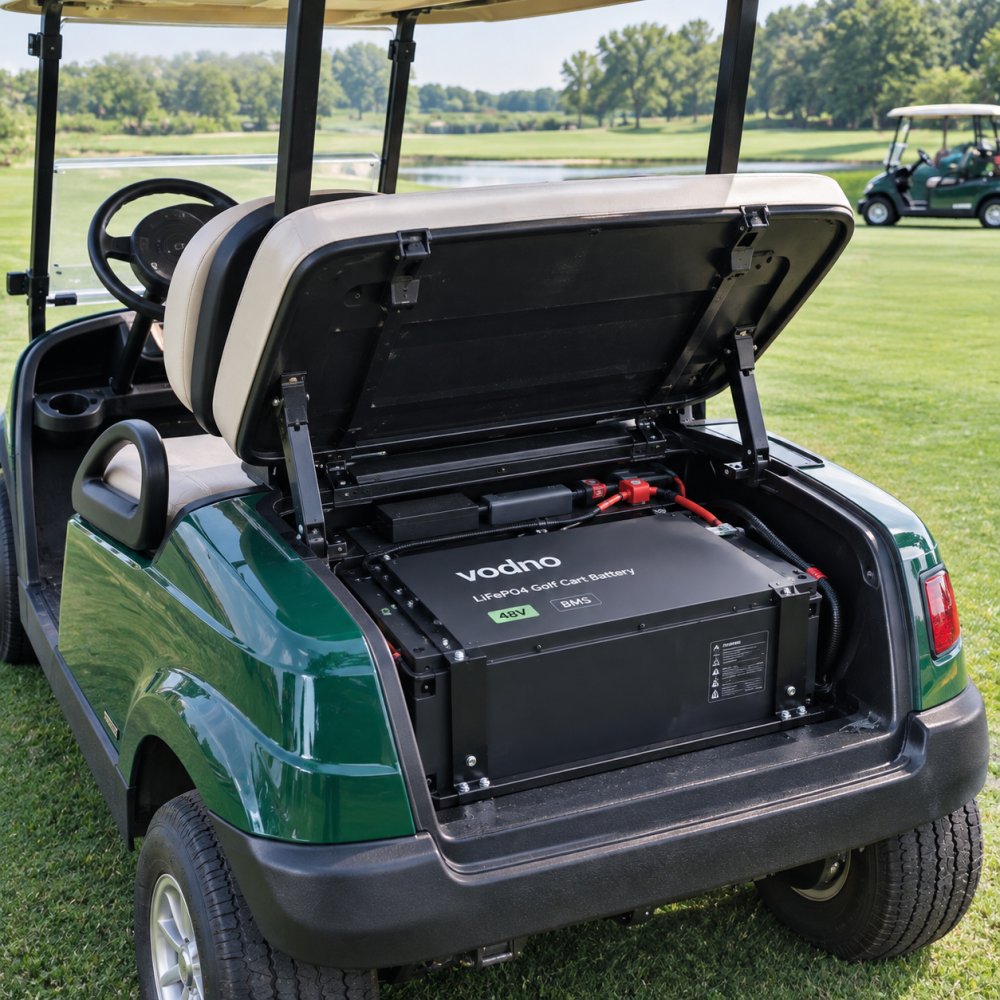

lithium battery for Electric golf cart
Feature Details
Application Electric golf carts, LSVs and utility vehicles
Voltage Options 36V, 48V, 60V and 72V
Battery Chemistry LiFePO4 lithium battery
Cell Quality Grade A cells designed for EV applications
Protection Intelligent BMS with temperature monitoring
Key Benefits Long service life, fast charging, low self-discharge and maintenance-free operation
Vehicle Compatibility Club Car, EZGO, Yamaha, ICON and other mainstream golf cart models

BATTERY APPLICATIONS

Reliable golf cart batteries provide stable power for transportation, utility and recreational vehicles across a wide range of outdoor and commercial environments.

48V LiFePO4 Golf Cart Battery Specifications

The 48V LiFePO4 golf cart battery is designed to provide stable power, fast charging and reliable performance for 48V electric golf carts. Available in multiple capacity options, it supports different driving range and operating requirements.
With a nominal voltage of 51.2V, intelligent BMS protection and high continuous discharge capability, this lithium golf cart battery is suitable for Club Car, EZGO, Yamaha, ICON and most mainstream 48V golf cart platforms.

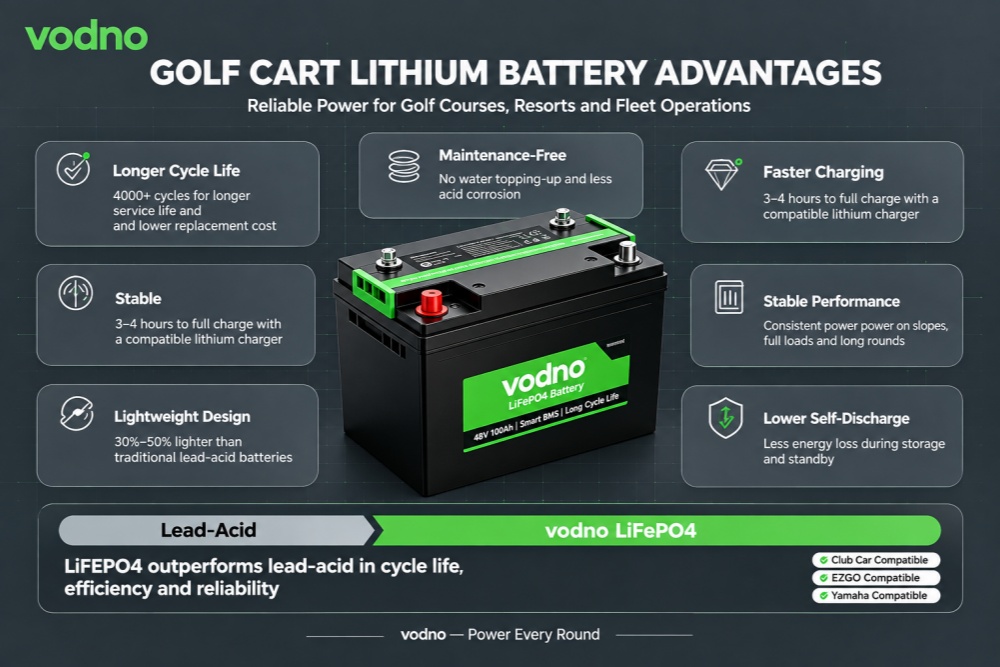

48V LiFePO4 Golf Cart Battery
48V LiFePO4 Golf Cart Battery
Specification Details
Nominal Voltage 51.2V
Full Charge Voltage 58.4V
Discharge Cut-off Voltage 40V
Nominal Capacity 60Ah/80Ah/100Ah/105Ah
Rated Energy 3.07kWh/4.10kWh/5.12kWh/5.38kWh
Standard Charge Current 0.5C
Max Continuous Discharge Current 100A–120A
Peak Discharge Current 180A (3s)
Cycle Life 4000–6000 cycles @ 0.5C
Charging Time 3–4 hours with matched lithium charger
Operating Temperature Charge: 0°C–45°C; Discharge: -20°C–60°C
Protection System Smart BMS with full protection and temperature monitoring
Compatibility Club Car, EZGO, Yamaha, ICON and most 48V golf carts

GOLF CART BATTERY SELECTION GUIDE

Voltage

  • 36V and 48V for most standard golf carts
  • 60V and 72V for high-speed and heavy-duty vehicles
  • Battery voltage must match the vehicle system
  • Incorrect voltage may affect the controller and motor
  • Designed to match mainstream golf cart platforms

Capacity

  • 60Ah to 80Ah for personal and low-frequency use
  • 100Ah to 105Ah for commercial and fleet applications
  • Higher capacity provides longer operating time
  • Capacity selection should match daily driving requirements
  • Choose according to vehicle load and usage frequency

Battery Type

  • LiFePO4 chemistry for golf cart applications
  • Long cycle life for frequent daily operation
  • Maintenance-free design reduces routine battery care
  • Low self-discharge supports longer storage periods
  • Stable discharge performance across outdoor applications

Compatibility

  • Compatible with Club Car golf carts
  • Suitable for EZGO golf cart models
  • Compatible with Yamaha golf carts
  • Suitable for ICON and other mainstream models
  • Check voltage, dimensions and connection requirements before replacement

DIFFERENT BATTERY MODELS

Vodno provides battery models with different capacities and configurations to meet the power requirements of electric forklifts, AGVs, logistics vehicles and golf carts.
Specification Electric Forklift AGV Vehicle Logistics Vehicle Golf Cart
Battery Model 51.2V 195Ah 51.2V 170Ah 51.2V 100Ah 51.2V 120Ah
Nominal Voltage 51.2V 51.2V 51.2V 51.2V
Rated Capacity 194.4Ah 169.2Ah 100.8Ah 120Ah
Communication CAN RS485 CAN CAN
Energy 9953Wh 8663Wh 5160Wh 6144Wh
Size 660×400×410mm 645×365×275mm 558×473×292mm 900×350×200mm
Charge Voltage 57.6±0.15V 57.6±0.15V 57.6±0.15V 57.6±0.15V
Discharge End Voltage 40V 40V 40V 40V
Charge Current ≤100A ≤40A ≤40A ≤24A
Discharge Current 200A 80A 100A 60A
Protection Overcharge, Overdischarge, Temperature, Balance, Communication

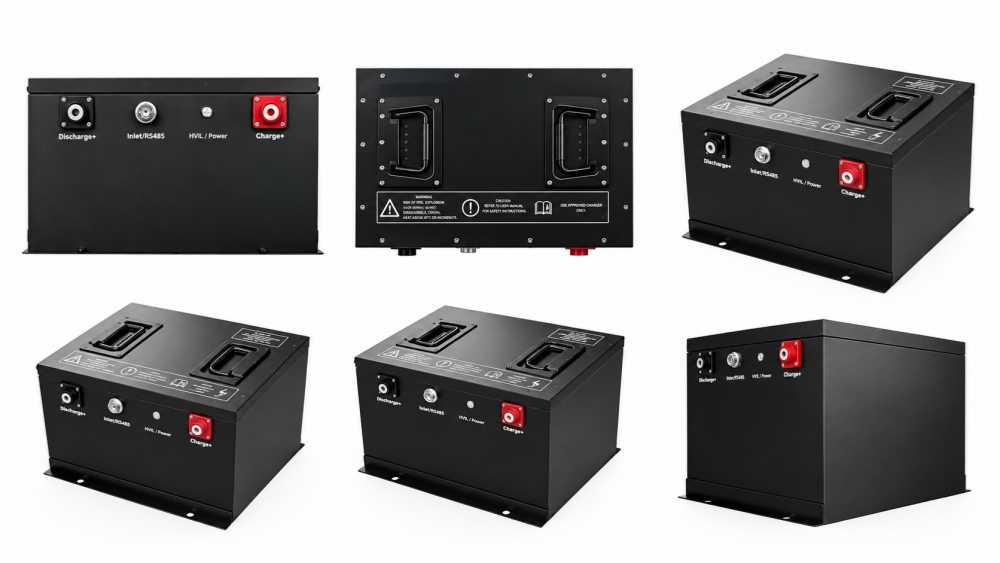

Battery models for different vehicle applications

ADVANTAGE

Vodno golf cart batteries provide stable, long-lasting power for daily transportation, recreational use and commercial fleet operations.
Instant Inquiry

WHY CHOOSE VODNO GOLF CART BATTERIES?

Choosing the right golf cart battery means more than replacing the original power source. Cell quality, BMS performance, cycle life and maintenance requirements all affect driving range, operating stability and long-term battery performance.
Vodno combines Grade A cells, intelligent BMS protection and LiFePO4 technology to provide reliable golf cart battery solutions for personal users, golf clubs, fleet operators and distributors.

Reliable Battery Quality

  • Grade A cells designed for EV applications
  • Stable voltage output during operation
  • Low self-discharge for longer storage

Designed for Long-Term Use

  • 4000–6000 cycle life at 0.5C
  • Maintenance-free LiFePO4 battery design
  • Fast charging with matched lithium chargers
  • Smart BMS with temperature monitoring
