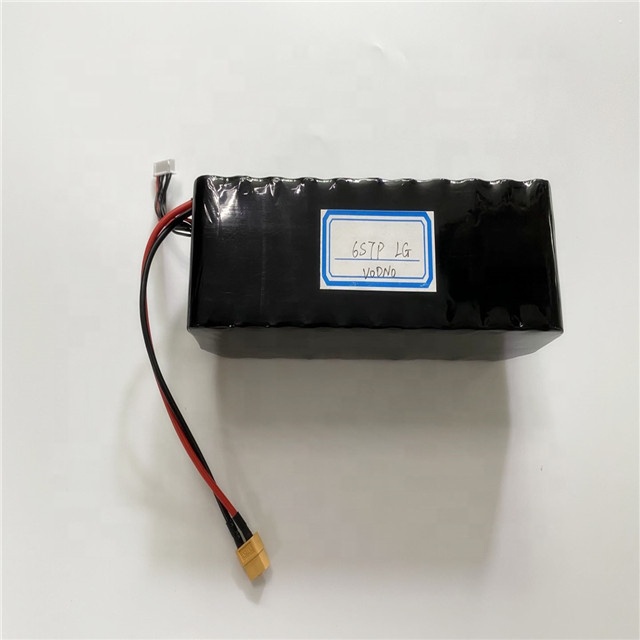

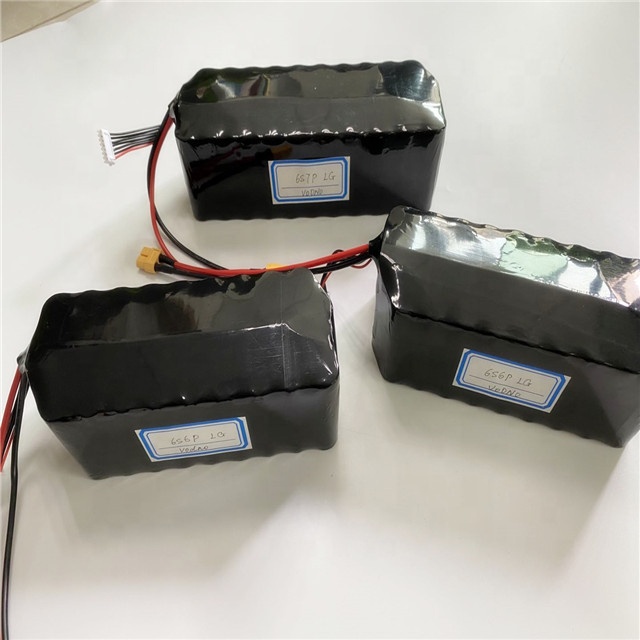

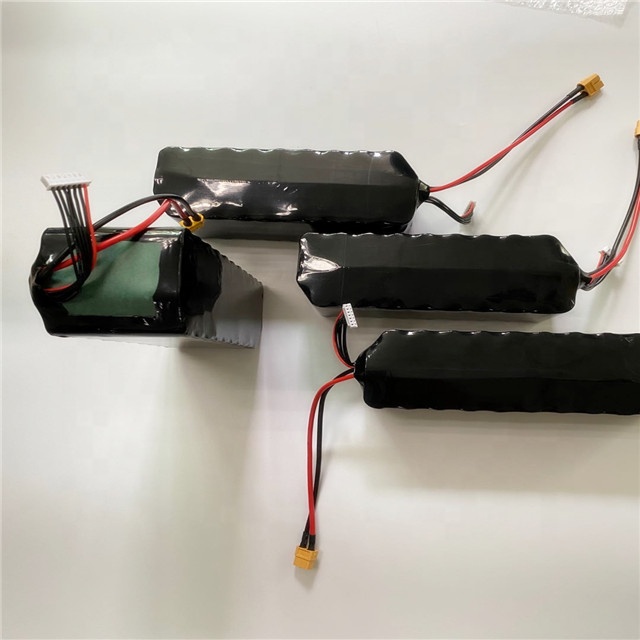

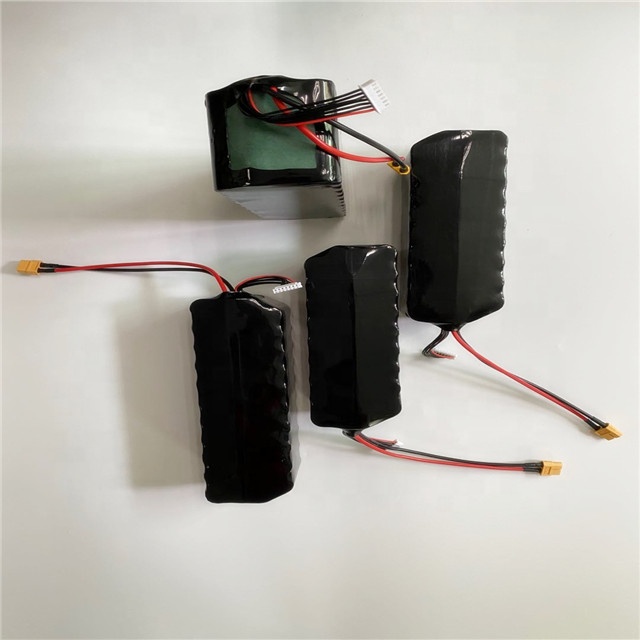

Customized 22.2v 21Ah China 18650 Lithium Ion Battery Pack With JST And XT60

18650 Li-ion batteries are the battery of choice when designing for higher voltage and current requirements. Li-ion have relatively low self-discharge rates, and are capable of high discharge currents and better performance than nickel and lead based batteries.

Quantity:
Share this:

Electric bicycle

Electric motorcycle

Electric tricycle

Electric boat

Motorhome

Energy storage

RC toy

Led light

Street light

UPS

Medical Equipment

Robot

Overview

The customer experience is focused to provide quality products and services. we provide both custom and standard battery solutions for OEM applications. With more than 10+ years of collective experience in custom battery pack design and battery distribution, we have the knowledge and expertise to help you through your most complex design and manufacturing challenges. We offer design support for the total battery pack requiring a BMS, a PCB, Enclosure, Testing, Regulatory Support, Custom Programming, etc. for industrial, commercial, and military applications.



Customized battery pack service :

Battery cell can be choose for China brands or LG SAMSUNG SONY PANASONIC

PCB parameter could change based on application

VODNO provide difference color of plastic PVC.

Buyer’s logo printing on battery requirement are welcome

Design battery size and solution in free service

Buyer advise connector type in order to assembly easily.

Specifications

Typical Capacity

21Ah          @ 0.2C Discharge

Minimum capacity

20Ah          @ 0.2C Discharge

Nominal voltage

22.2V

Standard Charge

CC/CV,0.2C5A, 25.2V

Standard Discharge

CC,0.2C5A, 16.5V

End-of-charge Voltage

25.20V±0.1V

End-of-charge Current

0.02C5A (At CV mode)

End-of-discharge Voltage

16.5 V

Charging Time

6.0hours(standard charge)

Quick Charge Current

21A   (1.0C5rate)

Quick Discharge Current

42A   (2.0C5rate)

Max Discharge Current

63A   (3.0C5rate)

Initial Impedance

Max: 190mW

Weight

Approx:1680±2g

Operating temperature

Charging:  0℃~45℃

Discharging:-20℃~60℃

Storage temperature

-5℃~35℃

Storage Humidity

≤75% RH

Appearance

Without scratch, distortion, contamination and leakage

Standard environmental condition



Temperature              : 25±2℃

 Humidity                :  45-75%RH

Atmospheric Pressure     : 86-106 KPA

Details

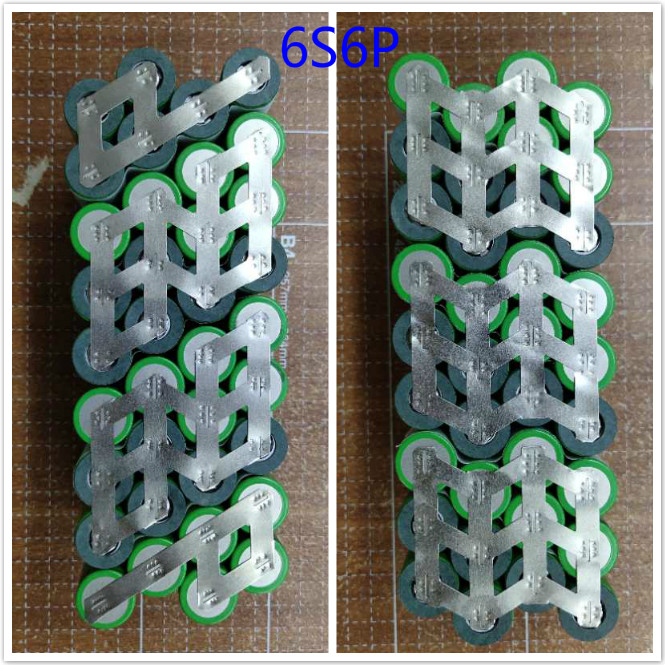

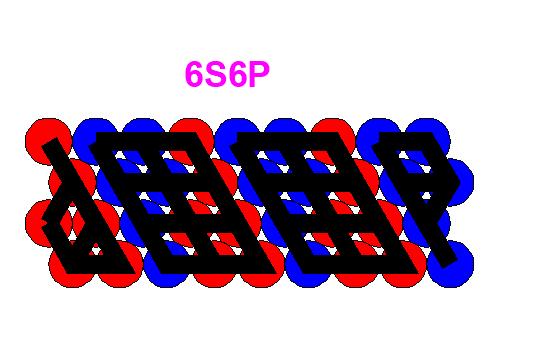

6S6P 18650 battery Pack in Blue Shrinktube

LG MJ1 3500mah cell

No PCB/BMS

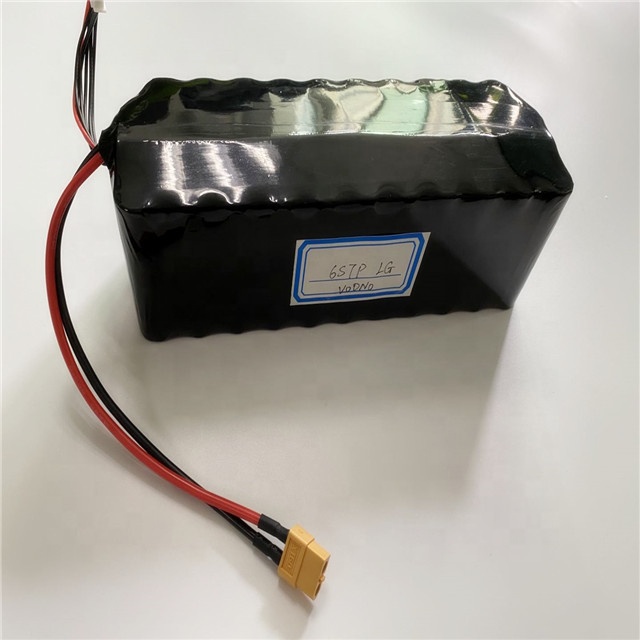

XT60 Female Connector -14AWG Cable - lenght 180mm

Balancer Connector: JST-XH 6S- length 70-80mm-24AWG

What is Your Application?Talk to us, Vodno Battery Experts will offer you a best solution
