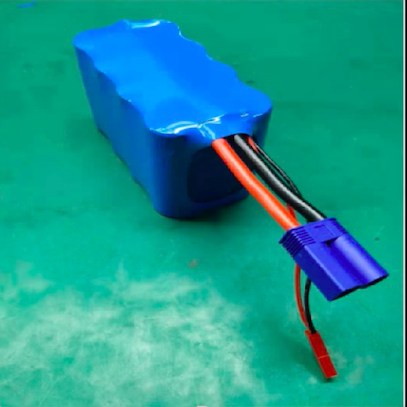

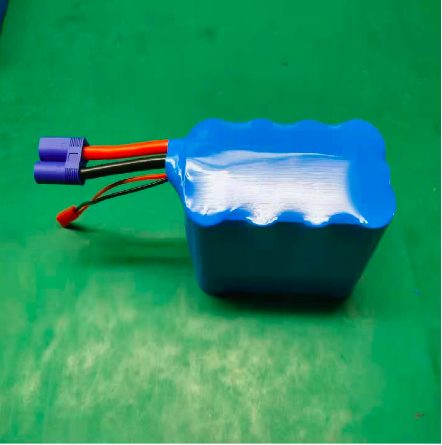

Lifepo4 12v 5Ah Jump Starter Racing Battery For Motorcycle

12v 5Ah lifepo4 batteries are mainly used as starter batteries for motorcycles.It has higher 140A discharge current. We also accept special OEM requests from the motorsports industry, give us a call and we will work with you to fulfill your demand.

Quantity:
Share this:

Electric bicycle

Electric motorcycle

Electric tricycle

Electric boat

Motorhome

Energy storage

RC toy

Led light

Street light

UPS

Medical Equipment

Robot

Overview

The Lifepo4 batteries refers to the Lithium Iron Phosphate (LiFePO4) chemistry used.  LiFePO4 or LFP batteries retain all the benefits of a conventional lithium battery but are significantly safer and are not prone to the overheating and explosive issues found in other chemistries (LIPO or lithium polymer chemistry found in mobile phones for example).

LiFePO4 chemistry allows for charge/discharge rates up to 10x that of lead acid chemistry (including AGM, Gel, flooded, sealed, etc).  Benefits also include full depth of discharge capability, up to 1/3 the weight and 5 times the cycle life of conventional lead acid!





Specifications

Model

VDO-LF1205

General Characteristics

Nominal voltage

12.8V

Nominal capacity@0.2C

5Ah

Nominal energy

64Wh

Internal Resistance

45≦mΩ

Life cycle

>2000Cycles @0.2C Charging /Discharging at 100%DOD

Self-Discharge

≤3.5%per month at 25℃

Standard Charging









Charging voltage

14.6+/-0.2V

Charging Mode(CC/CV)

At 0℃~45℃temperature, charged to 14.6V at constant current 0.2C5A,and then at constant voltage 14.6V until the current drops to 0.02C5A

Charging Current

10A

Max.Charging Current

20A

Standard Discharging









Discharging Current

10A

Max.Continuous Current

140A

Max.Pulse Current

240A(<3S)

Discharging cut-off Voltage

10.0V

Operating conditions







Operating temperature

Charge

0℃~45℃



Discharge

-20℃~60℃

Storage temperature

0℃~45℃

Water dust resistance

No

Structure

Casing

PVC blue

Dimension

55*75*120mm

Approx.Weight

0.85kgs

Terminal

Customized

Application

The energy storage battery is applicable for commercial or residential purposes.

1.Solar Energy Storage  2.Solar Street lighting  3.Light Electric Vehicle  4.E-bike/E-Rickshaw  5.Golf Cart  6.UPS

Warranty

VODNO promise customer 3 years warranty based on battery performance,any unqualified battery are credit replacement within 3 years, no extra maintenance fees. but VODNO has no obligation under this Limited Warranty for Product subjected to the following conditions (including but not limited to):

  • Damage caused during shipping or mishandling of the Product

  • Damage due to improper installation; loose terminal connections, under-sized cabling, incorrect series (cannot be used in series) or parallel connections, reverse polarity connections or insufficient space for airflow

  • Environmental damage such as inappropriate storage conditions as defined by the VODNO, exposure to extreme hot or cold temperatures, fire or freezing, or water damage, impact or collision

  • Damage due to improper operation or maintenance such as under- or over- charging the Product, cold temperature charging, lack of cleaning resulting in corroded terminal connections or build-up of dirt, debris, organic matter, fossil fuels or chemicals on the Product casing

  • Improper use of CAN cables such as improper connections or not connecting them

  • Installing CAN communication devices that do not follow the appropriate CANbus guidelines as defined by the VODNO

  • Product that has been opened, modified or tampered with

  • Tampering or removal of manufacture date codes

  • Product that was used for applications other than which it was designed and intended for by the VODNO

  • Product that was under-sized for the application

This Limited Warranty does not cover a Product that has reached its normal end of life due to usage which may occur prior to the Warranty Period. A battery can deliver only a fixed amount of Energy over its life which will occur over different periods of time depending on the application. The Manufacturer reserves the right to deny a warranty claim if the Product is determined, upon inspection, to be at its normal end of life even if within the Warranty Period.

What is Your Application?Talk to us, Vodno Battery Experts will offer you a best solution
