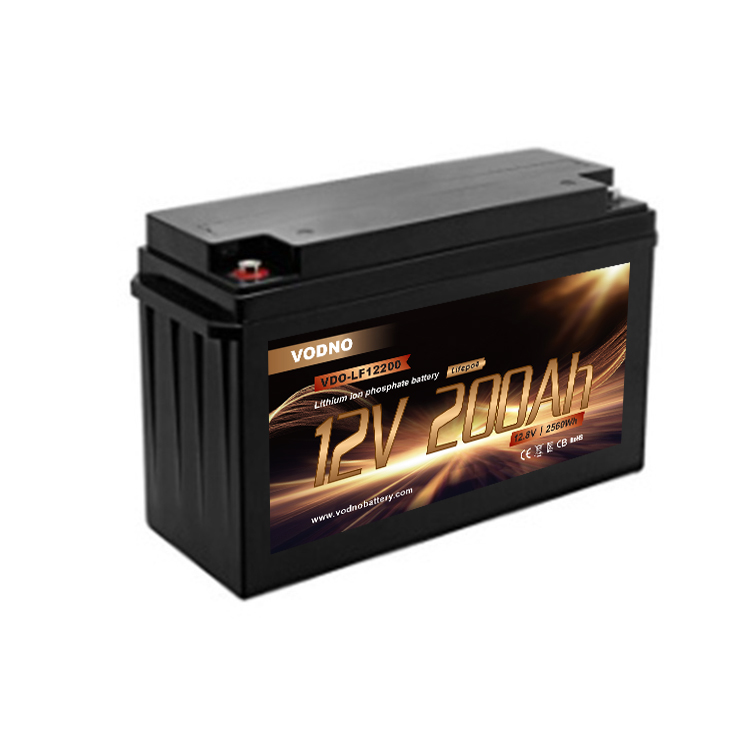

Rechargeable Lifepo4 Lithium Ion 12v 200ah Battery Pack

Rechargeable Lifepo4 Lithium Ion 12v 200ah Battery Pack

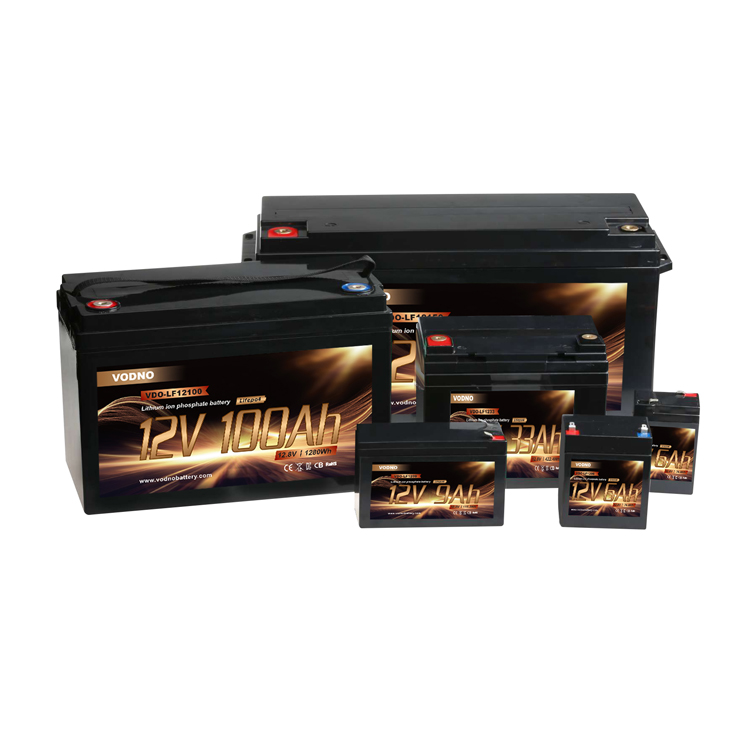

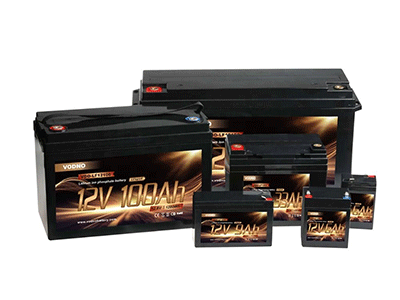

LiFePO4 is the more efficient technology batteries, knocking out traditional lead acid batteries . VODNO provides a complete line of 12, 24 and 48 volt batteries for use in RV’s, Boats, EV's and off-grid applications and much more.

Quantity:

Overview

LiFePO4 batteries provide more energy than lead-acid batteries and are typically half the mass, reducing concerns about battery weight. Compared to other battery chemistries, lithium provides the same or greater energy at less than half the weight and size. This means more flexibility and easier installation!

We promise only GRADE A cells for your battery pack, How to differentiate

Grade A cell from B and C, pls refer to following.

Grade A: Cells perform to manufacturer specifications with long life cycle

Grade B: Cells under-perform or have other defects with short life cycle

Grade C: Cells are used, repackaged, salvaged, or damaged

Specifications

Model		VDO-LF12200
General Characteristics
Nominal voltage		12.8V
Nominal capacity@0.2C		200Ah
Nominal energy		2560Wh
Internal Resistance		35≦mΩ
Life cycle		>2000Cycles @0.2C Charging /Discharging at 90%DOD
Self-Discharge		≤3.5%per month at 25℃
Standard Charging
Charging voltage		14.6+/-0.2V
Charging Mode(CC/CV)		At 0℃~45℃temperature, charged to 14.6V at constant current 0.2C5A，and then at constant voltage 14.6V until the current drops to 0.02C5A
Charging Current		40A
Max.Charging Current		100A
Standard Discharging
Discharging Current		40A
Max.Continuous Current		100A
Max.Pulse Current		200A（<3S)
Discharging cut-off Voltage		10.0V
Operating conditions
Operating temperature	Charge	0℃～45℃
	Discharge	－20℃～60℃
Storage temperature		0℃～45℃
Water dust resistance		IP56
Structure
Casing		ABS
Dimension		522238218*220mm
Approx.Weight		27kgs
Terminal		M8
