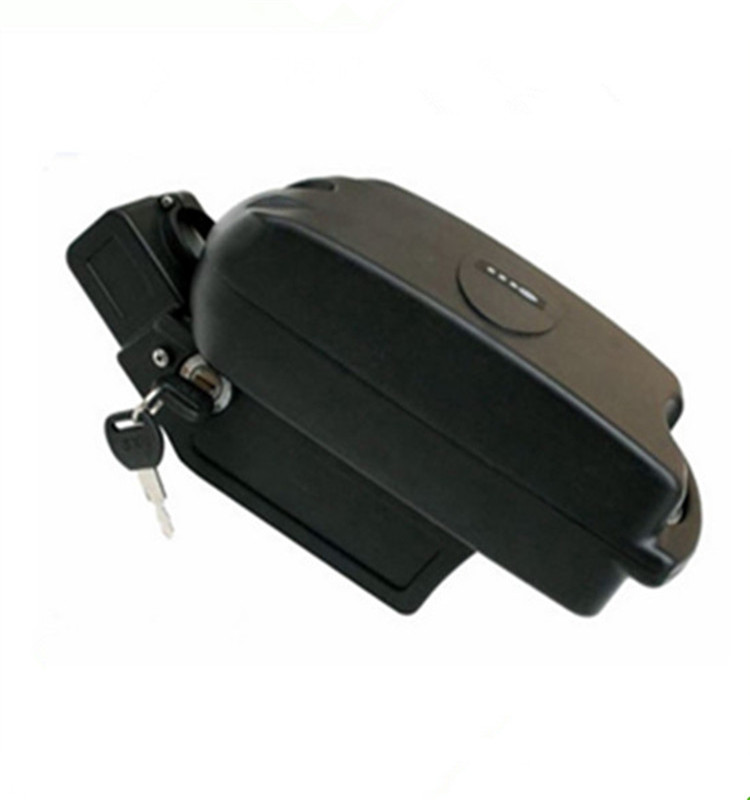

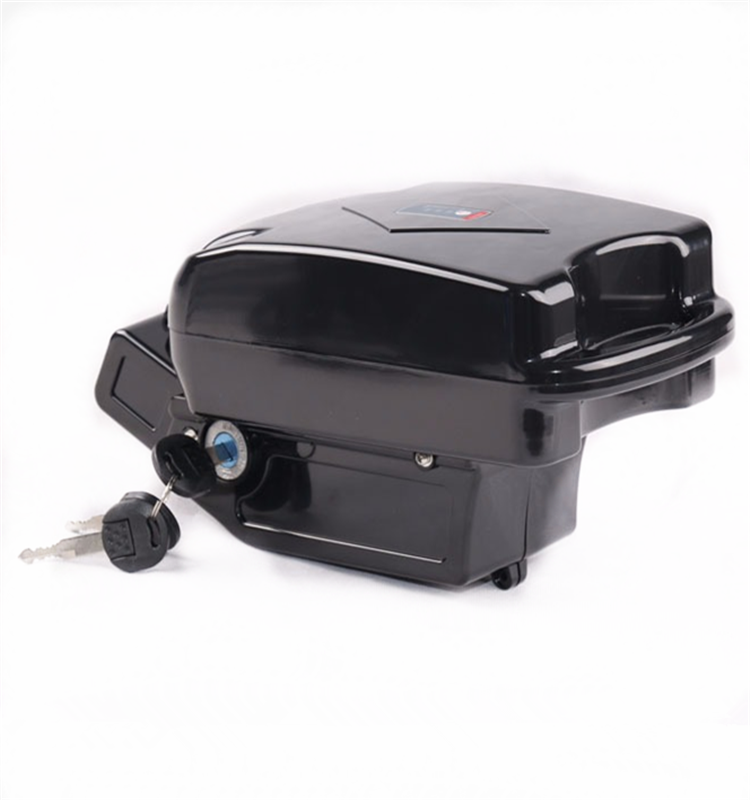

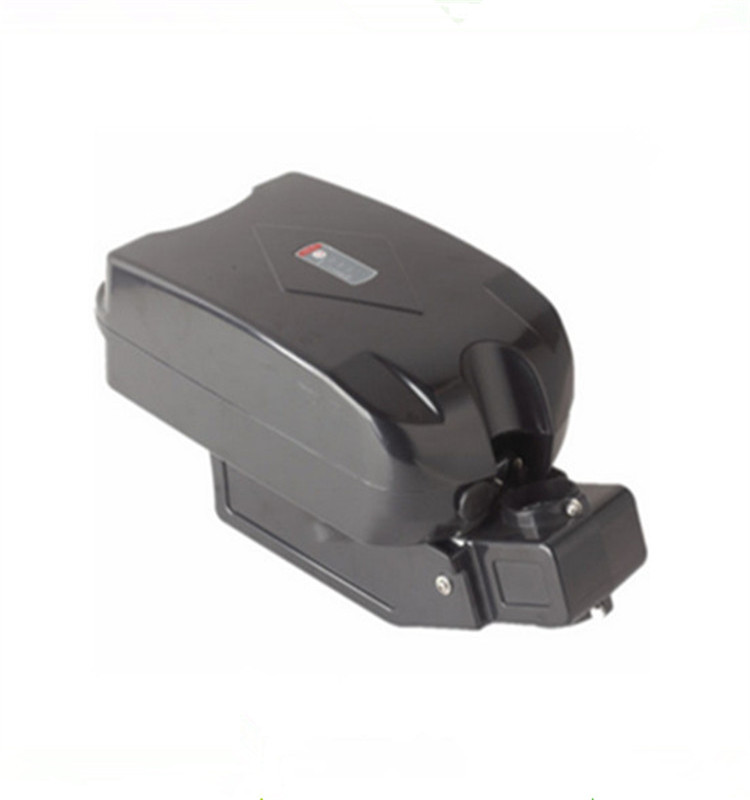

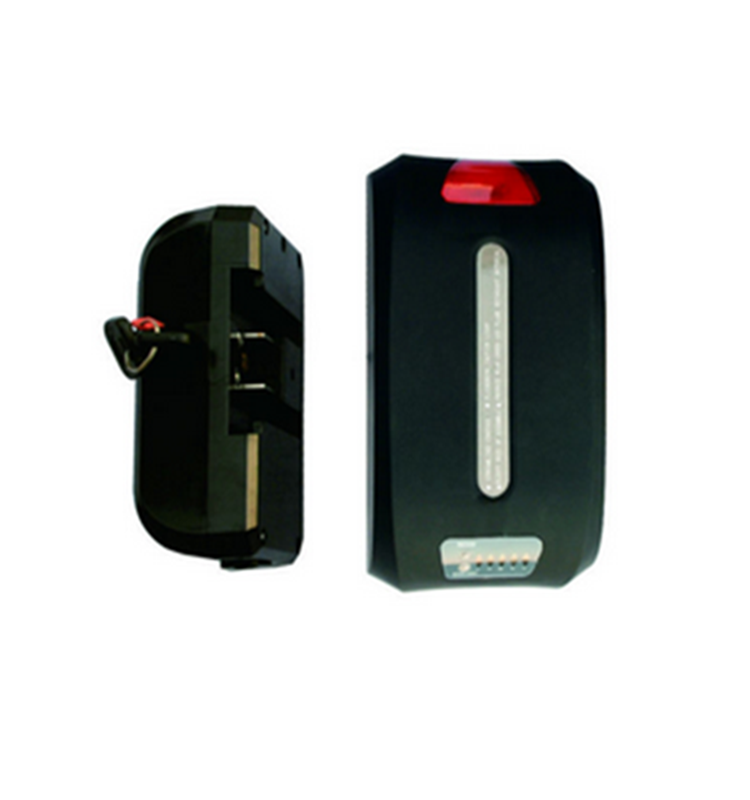

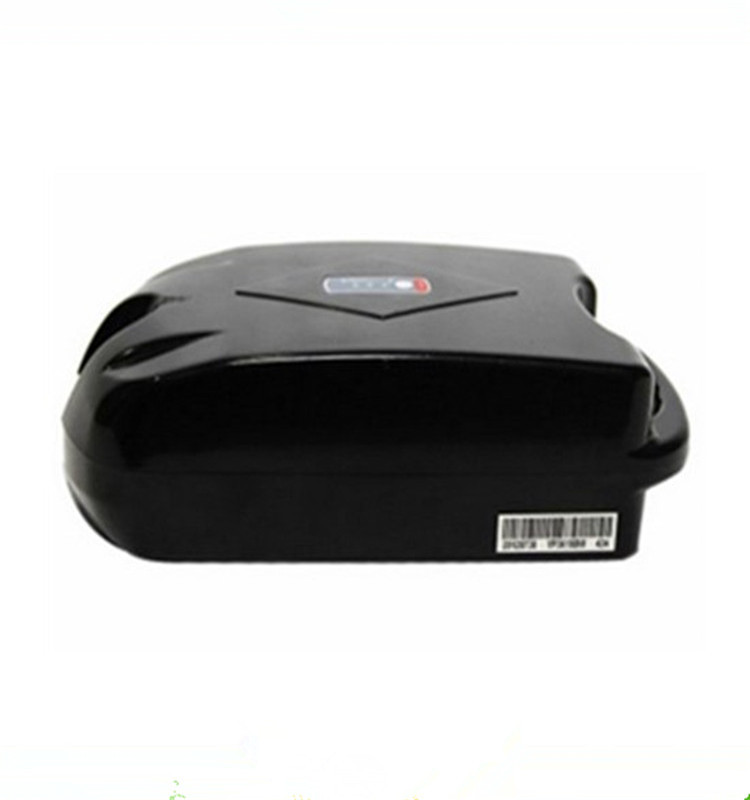

Small Case E Bicycle Lithium Battery Pack 24v 10ah Battery With BMS

Small Case E Bicycle Lithium Battery Pack 24v 10ah Battery With BMS

Li ion battery is much popular in the electric bicycle industrial, Its brings us friendly environment with lot of fun world. Li ion battery pack for e-bike is lighter weight, size smaller and high energy power, It is best choice up to now.

Quantity:

Overview

Quality + Safety = VODNO e-bike battery

E-bike lithium battery packs are available in several chemistries, You could make a decision according to your market.

Lithium cobalt oxide provides the greatest energy density

Lithium manganese offers greater safety with lower energy density than lithium cobalt oxide

Lithium iron phosphate provides high discharge rate capabilities, as well as long cycle and calendar life

Why choose us :

1, Strong design and provide solution based on difference shape, capacity and voltage to match your application.
2, high quality OEM logo or sticker.
3, Easy and cheap apply difference certification based on your market.
4, Rich experience to select suitable battery charger.
5, Professionally arrange to ship battery by sea or by air door to door.
6, Best price provide original China’s brand cell including BK,BYD,Lishen,Tession,etc and Samsung, lg, Panasonic,Sony cell etc.

Specifications

Model		VDO-Li2410 (China brand cell)
General Characteristics
Nominal voltage		24V (7S4P）
Nominal capacity@0.2C		12.5Ah
Nominal energy		240Wh
Internal Resistance		240≦mΩ
Life cycle		>800 Cycles @0.2C Charging /Discharging at 90%DOD
Standard Charging
Charging voltage		29.4+/-0.2V
Charging Mode(CC/CV)		At 0℃~45℃temperature, charged to 29.4V at constant current 0.5C3A，and then at constant voltage 29.4V until the current drops to 0.5C3A
Charging Current		3A
Max.Charging Current		5A
Standard Discharging
Discharging Current		5A
Max.Continuous Current		10A
Max.Pulse Current		22A（<3S)
Discharging cut-off Voltage		20+/-0.2V
Operating conditions
Operating temperature	Charge	0℃～60℃	0℃～60℃	0℃～60℃
	Discharge	－20℃～60℃	－20℃～60℃	－20℃～60℃
Storage temperature		-10℃～45℃	-10℃～45℃	-10℃～45℃
Water dust resistance		N/A	N/A	N/A

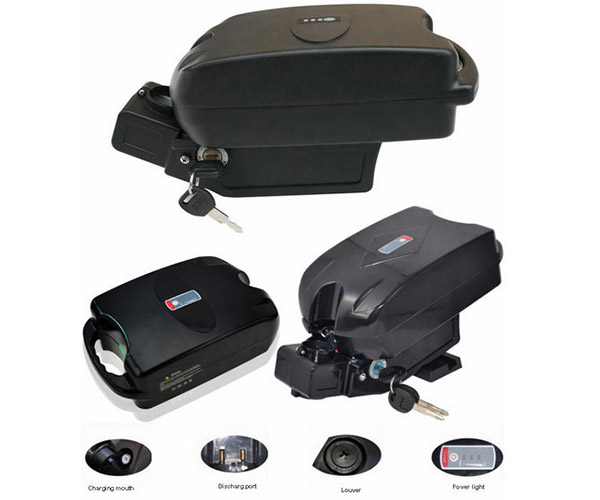

Structure
Casing		Frog
Approx.Weight		≤2.5kgs
Terminal		N/A
