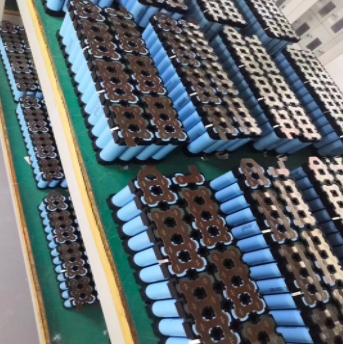

Popular 36V 15Ah 350W Battery Pack With China 18650 Cell For City Bike

Popular 36V 15Ah 350W Battery Pack With China 18650 Cell For City Bike

18650 Li-ion batteries are the battery of choice when designing for higher voltage and current requirements. Li-ion have relatively low self-discharge rates, and are capable of high discharge currents and better performance than nickel and lead based batteries.

Quantity:

Overview

Quality + Safety = VODNO e-bike battery

E-bike lithium battery packs are available in several chemistries, You could make a decision according to your market.

Lithium cobalt oxide provides the greatest energy density

Lithium manganese offers greater safety with lower energy density than lithium cobalt oxide

Lithium iron phosphate provides high discharge rate capabilities, as well as long cycle and calendar life

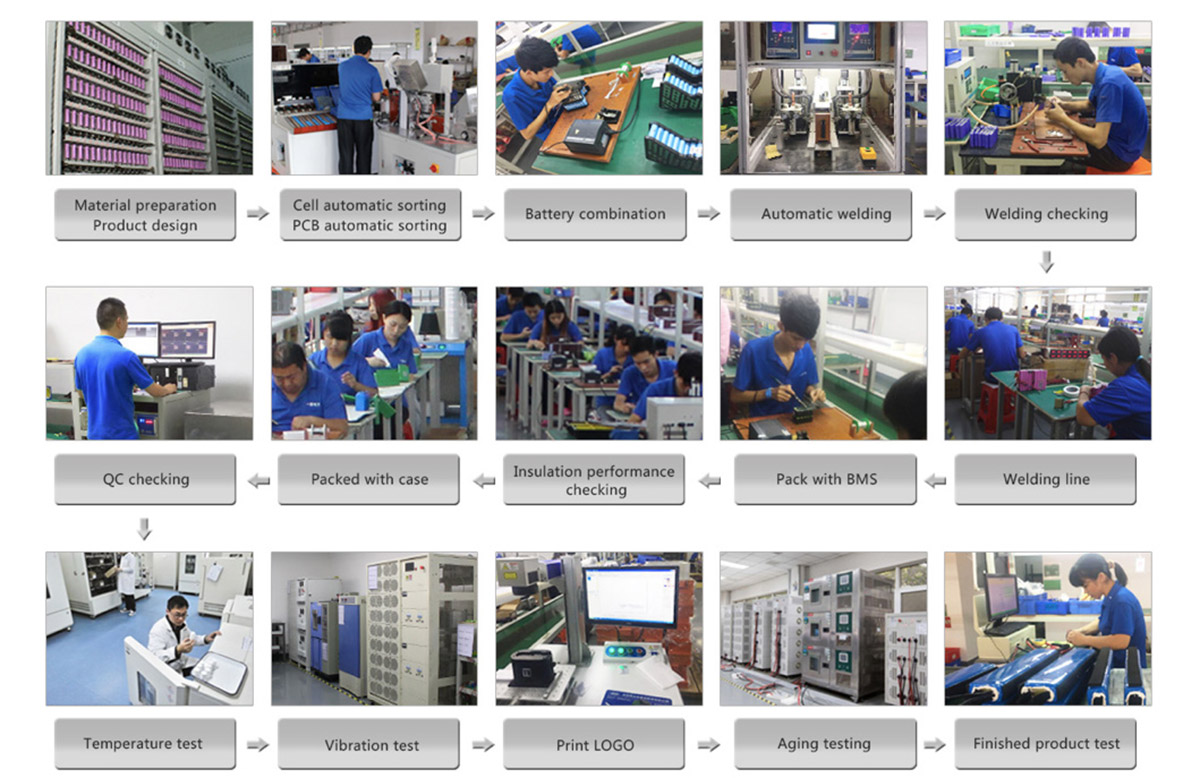

If you are interest in how to produce a battery pack, pls refer to following workflow.

Specifications

Model		VDO-Li3615 ( China 2500mAh )
General Characteristics
Nominal voltage		36V (10S6P）
Nominal capacity@0.2C		15Ah
Nominal energy		540Wh
Internal Resistance		200≦mΩ
Life cycle		>600 Cycles @0.2C Charging /Discharging at 90%DOD
Standard Charging
Charging voltage		42.0+/-0.2V
Charging Mode(CC/CV)		At 0℃~45℃temperature, charged to 42V at constant current 0.5C3A，and then at constant voltage 42V until the current drops to 0.5C3A
Charging Current		3A
Max.Charging Current		5A
Standard Discharging
Discharging Current		10A
Max.Continuous Current		15A
Max.Pulse Current		30A（<3S)
Discharging cut-off Voltage		28V
Operating conditions
Operating temperature	Charge	0℃～60℃
	Discharge	－20℃～60℃
Storage temperature		-10℃～45℃
Water dust resistance		N/A
Structure
Casing		Plastic PVC
Dimension		N/A
Approx.Weight		≤2.35kgs
Terminal		XT60/3pin /key switch

Application

What is your wonderful application ?

Fat bikes/Floding bikes/Cruzh bikes/City biks/Mountaion bikes

Voltage(V)	Capacity(Ah)	BMS current (Max.A)	Charger(A)	Battery cell
36V(10S)	15Ah	30A	2A	China/Samsung
	20Ah	30A	2A	China/Samsung
	25Ah	30A	2A	China/Samsung
	27.5Ah	30A	2A	China/Samsung
48V(13S)	15ah	40A	3A	China/Samsung
	17.5Ah	40A	3A	China/Samsung
	20Ah	40A	3A	China/Samsung
	22.5 Ah	40A	3A	China/Samsung
	28.8Ah	60A	3A	China/Samsung
52V(14S)	15Ah	40A	5A	China/Samsung
	20Ah	40A	5A	China/Samsung
	25.6Ah	60A	5A	China/Samsung
