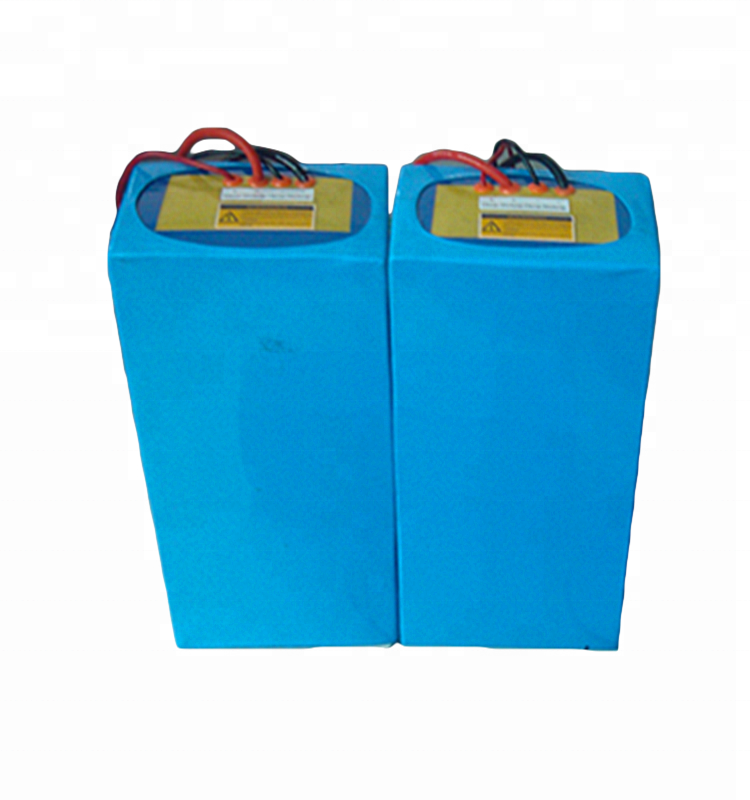

Size Customized High Rate 18650 10s 36v 11.6Ah Battery Pack

18650 Li-ion batteries are the battery of choice when designing for higher voltage and current requirements. Li-ion have relatively low self-discharge rates, and are capable of high discharge currents and better performance than nickel and lead based batteries.

Quantity:
Share this:

Electric bicycle

Electric motorcycle

Electric tricycle

Electric boat

Motorhome

Energy storage

RC toy

Led light

Street light

UPS

Medical Equipment

Robot

Overview

Quality + Safety = VODNO e-bike battery

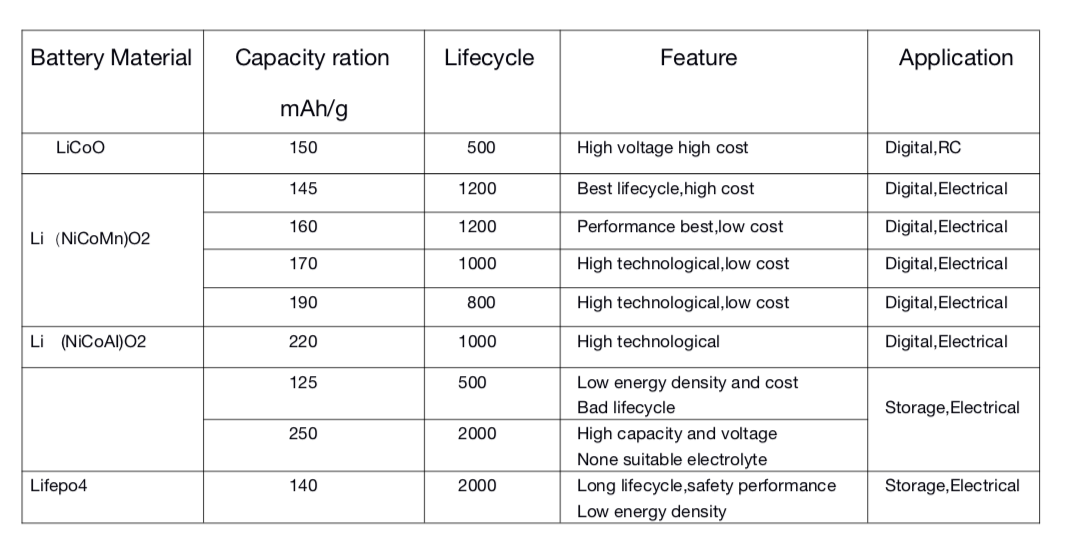

E-bike lithium battery packs are available in several chemistries, You could make a decision according to your market.

Lithium cobalt oxide provides the greatest energy density

Lithium manganese offers greater safety with lower energy density than lithium cobalt oxide

Lithium iron phosphate provides high discharge rate capabilities, as well as long cycle and calendar life

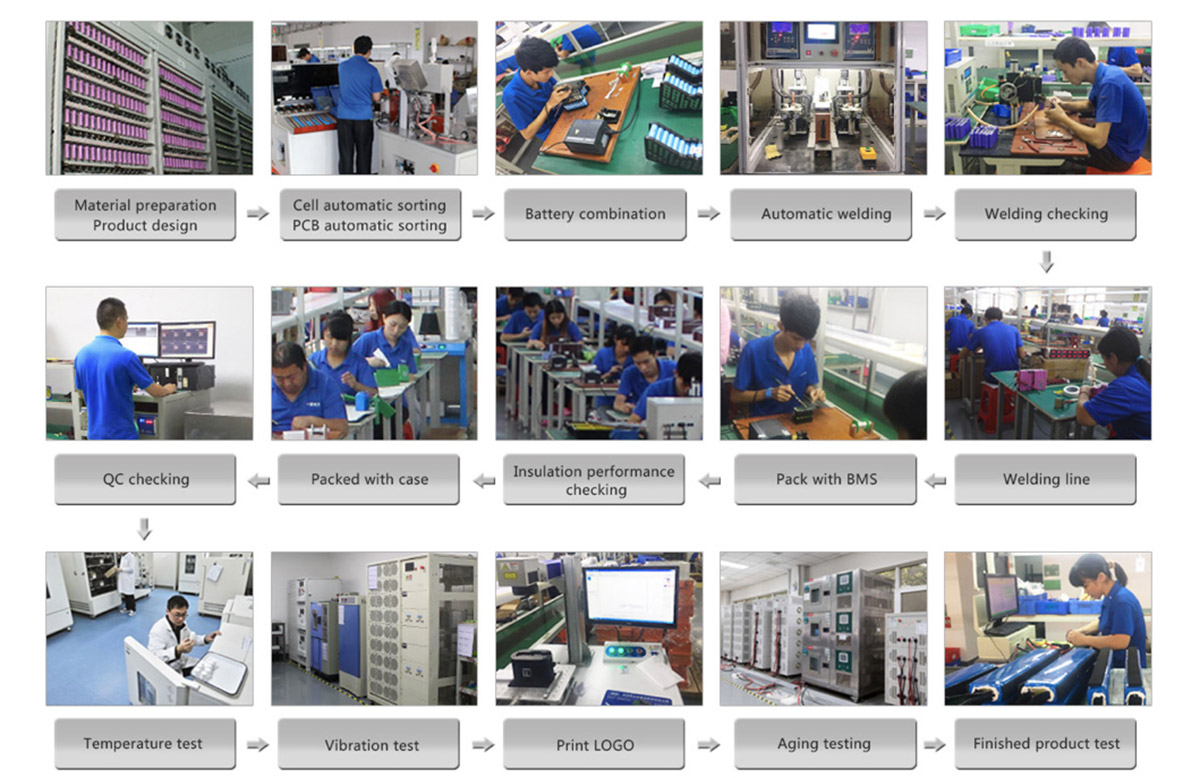

If you are interest in how to produce a battery pack, pls refer to following workflow.





Specifications

Model

VDO-Li3611  ( Samsung 29E )

General Characteristics

Nominal voltage

36V (10S4P)

Nominal capacity@0.2C

11.6Ah

Nominal energy

487.2Wh

Internal Resistance

200≦mΩ

Life cycle

>600 Cycles @0.2C Charging /Discharging at 90%DOD

Standard Charging

Charging voltage

42.0+/-0.2V

Charging Mode(CC/CV)

At 0℃~45℃temperature, charged to 42V at constant current 0.5C3A,and then at constant voltage 42V until the current drops to 0.5C3A

Charging Current

3A

Max.Charging Current

5A

Standard Discharging

Discharging Current

10A

Max.Continuous Current

15A

Max.Pulse Current

30A(<3S)

Discharging cut-off Voltage

28V

Operating conditions

Operating temperature

Charge

0℃~60℃

Discharge

-20℃~60℃

Storage temperature

-10℃~45℃

Water dust resistance

N/A

Structure

Casing

Plastic PVC

Dimension

N/A

Approx.Weight

≤2.35kgs

Terminal

XT60/3pin /key switch

Application

What is your wonderful application ?

What is Your Application?Talk to us, Vodno Battery Experts will offer you a best solution
