48v 100Ah 5.12kWh Lithium Ion Solar Battery system for industrial

It is composed of high-quality lithium iron phosphate batteries (series and parallel) plus an advanced BMS battery management system. Usually classified as low voltage and high voltage, includes 24V, 48V, 51.2V， and so on，with wall mounted, cabinet rack, portable case suitable for your space

Quantity:

Overview

Main Features

 Long Life Span

The battery can be expected to remain serviceable for more than 10 years, considering that it is

charged and discharged once in a day at room temperature (25 °C).

 Long Life Span

Olivine-type lithium iron phosphate batteries with excellent thermal stability and storage characteristics are used in this product. The module also incorporates a self-monitoring function for the detection of any abnormalities in energy storage.

 Compact Design

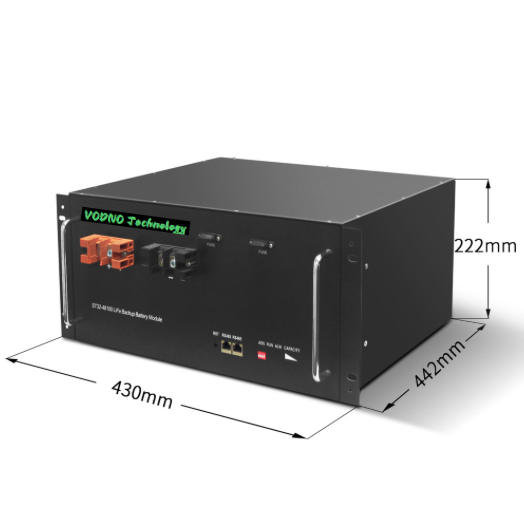

The height is nicely designed in 3U, in favor of standard industrial applications.

 High Scalability

Multiple energy storage modules can be connected in parallel, and the capacity can be customized according to the intended use.

Specifications

48v series lifepo4 battery model
Item	48V10Ah	48V20Ah	48V30Ah	48V40Ah	48V50Ah	48V100Ah	48V150Ah	48V200Ah
Battery Chemistry	LIFEPO4	LIFEPO4	LIFEPO4	LIFEPO4	LIFEPO4	LIFEPO4	LIFEPO4	LIFEPO4
Working Voltage	48V	48V	48V	48V	48V	48V	48V	48V
Nominal Voltage	51.2V	51.2V	51.2V	51.2V	51.2V	51.2V	51.2V	51.2V
Capacity	512kWh	1.024kWh	1.536kWh	2.048kWh	2.56kWh	5.12kWh	7.68kWh	10.24kWh
Communication	RS232/RS485
Waterproof	IP55
Charging operating temperature range	-0~50 ℃
Disharging operating temperature range	-20~65 ℃
Continues Max charging current	0.5C	0.5C	0.5C	0.5C	0.5C	0.33C	0.2C	0.2C
Continues Max discharging current	1C	1C	1C	1C	1C	0.5C	0.33C	0.33C
Lifecycle	Capacity 80% after 2000 times lifecycle
Weight	<8kg	<13kg	<17kg	<22.5kg	<28kg	<50kg	<70kg	<78kg
尺寸(WDH)mm	48327188mm	48338595mm	48335188mm	48040090mm	430350130mm	483420222mm	483615222mm	483498288mm

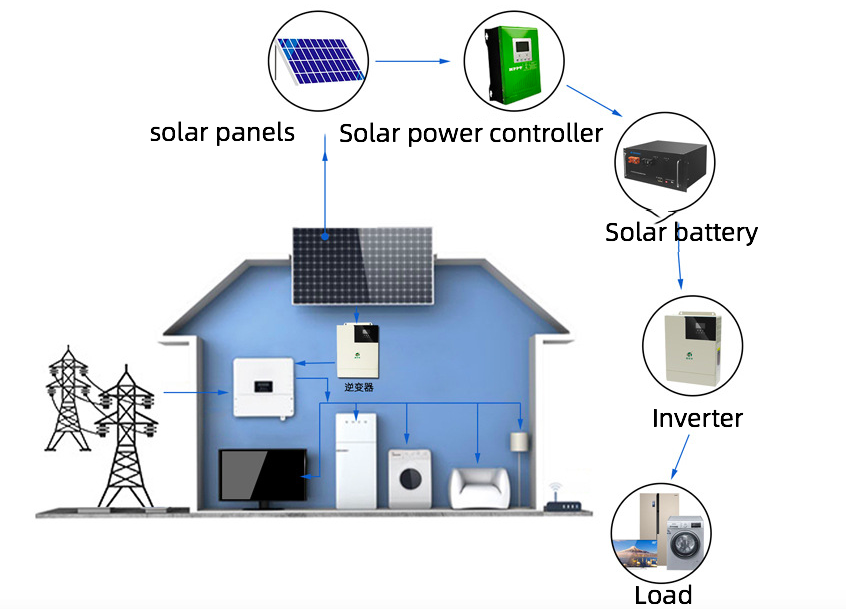

Application

Details

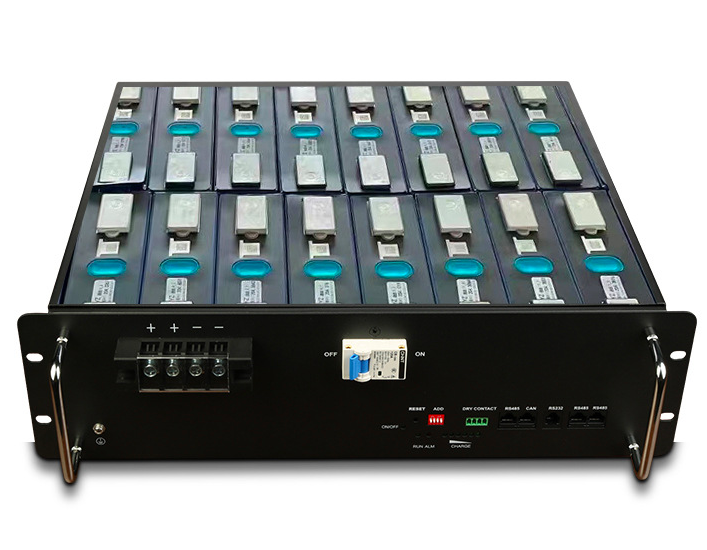

Energy Storage System is consisted of 16 pcs of 100 Ah LFP cell originated from CATL. The overall system also provides standard communication port, i.e. CAN and RS485, to monitor the working status and communicate with upper machine as well as the Power Conversion System (PCS) in front.
