It is composed of high-quality lithium iron phosphate batteries (series and parallel) plus an advanced BMS battery management system. Usually classified as low voltage and high voltage, includes 24V, 48V, 51.2V, and so on,with wall mounted, cabinet rack, portable case suitable for your space
Electric bicycle
Electric motorcycle
Electric tricycle
Electric boat
Motorhome
Energy storage
RC toy
Led light
Street light
UPS
Medical Equipment
Robot
Battery System

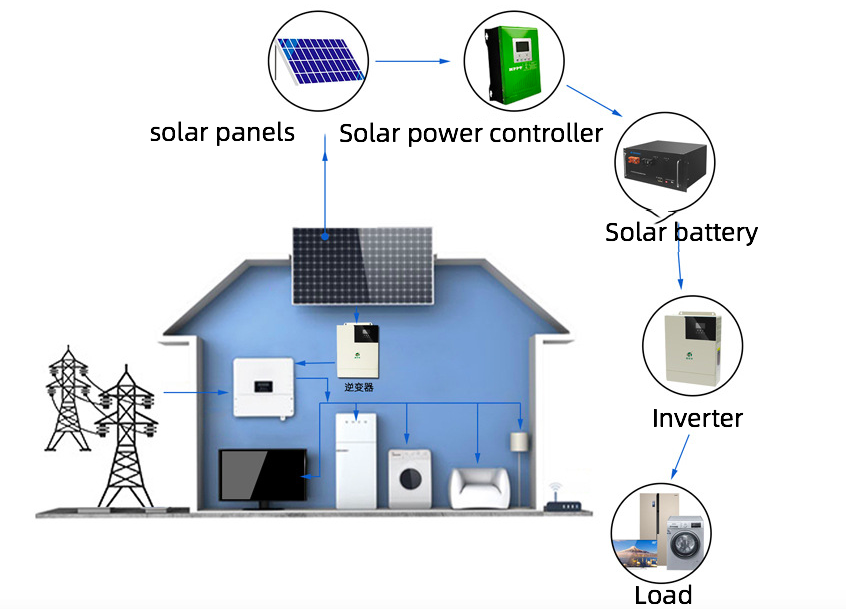

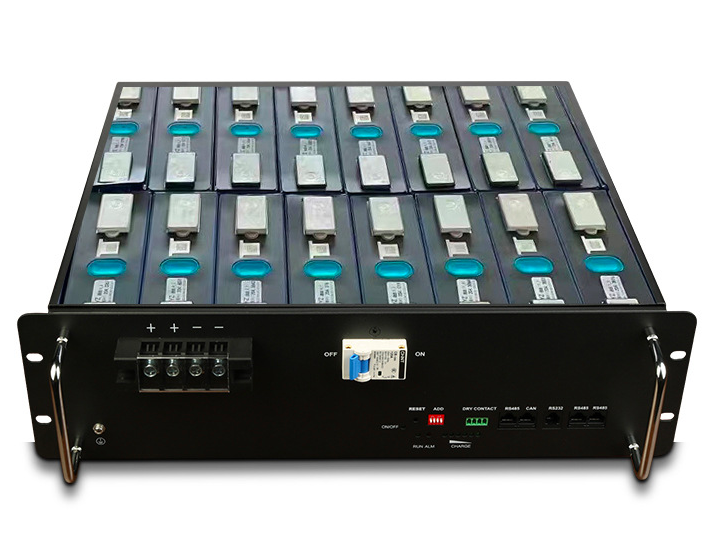

Our 48v battery system supports solar energy storage of both commercial and industrial purposes,The system is built from intergration of Basic storage of Basic storage battery in parallel connection with BMS (Battery Management System)for protection and communication.
Standard lineup
1.Operating voltage 48v and 51.2V

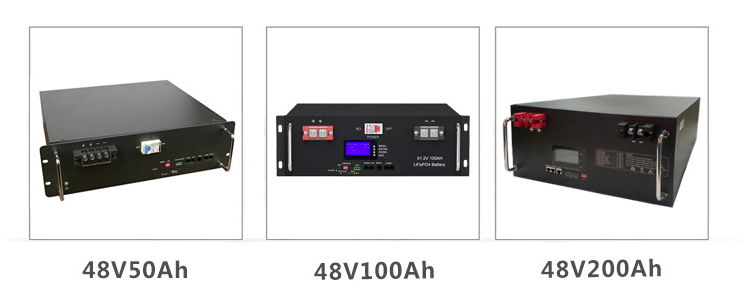

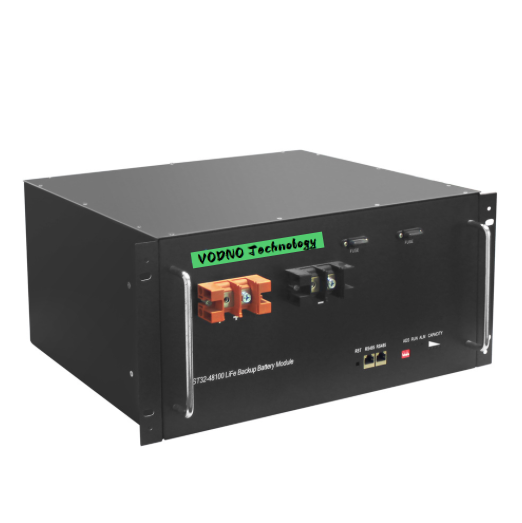

2.Typical Basic Battery 48V 100Ah while more option from 48v 10Ah/20Ah/30Ah/50Ah/70Ah

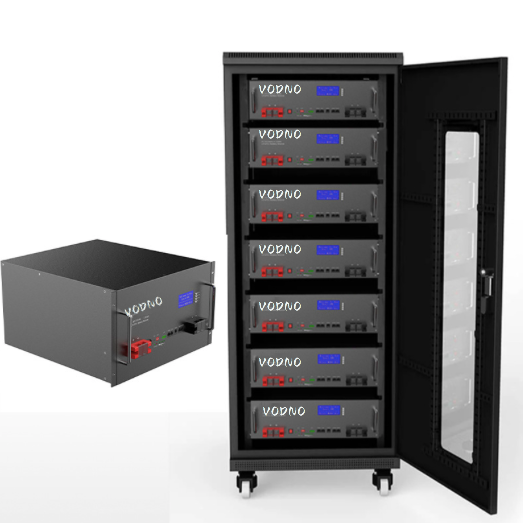

3.Optional capacity in cabinet size 200Ah~600Ah
Features
1.Multiple of basic storage battery of nominal voltage 48v in parallel connection.
2.Each basic storage battery with built in intelligent BMS effectively prevent battery overcharge,over-discharge,overcurrent and over-temperaure.

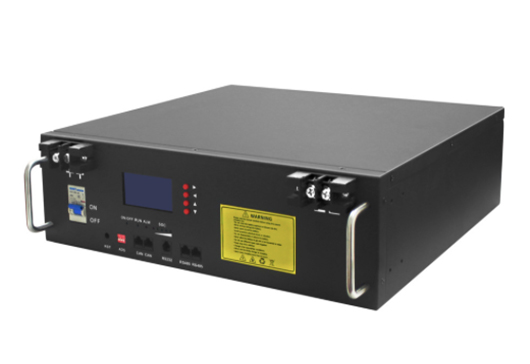

3.Standard 19 inch rack-mount durable enclosure for plug & play replacement.
4.Equipped with RS485/RS232 communication.
5.Standard BMS with options for charging current limit in parallel connection (programmable ON/OFF).
6.Efficient & long-lasting service life.
Custom manufacturing
1.Custom battery system is available through intergration of more basic storage battery.
2.Battery systems of different operating voltage,capacity etc.
48v series lifepo4 battery model | ||||||||
Item | 48V10Ah | 48V20Ah | 48V30Ah | 48V40Ah | 48V50Ah | 48V100Ah | 48V150Ah | 48V200Ah |
Battery Chemistry | LIFEPO4 | LIFEPO4 | LIFEPO4 | LIFEPO4 | LIFEPO4 | LIFEPO4 | LIFEPO4 | LIFEPO4 |
Working Voltage | 48V | 48V | 48V | 48V | 48V | 48V | 48V | 48V |
Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V |
Capacity | 512kWh | 1.024kWh | 1.536kWh | 2.048kWh | 2.56kWh | 5.12kWh | 7.68kWh | 10.24kWh |
Communication | RS232/RS485 | |||||||
Waterproof | IP55 | |||||||
Charging operating temperature range | -0~50 ℃ | |||||||
Disharging operating temperature range | -20~65 ℃ | |||||||
Continues Max charging current | 0.5C | 0.5C | 0.5C | 0.5C | 0.5C | 0.33C | 0.2C | 0.2C |
Continues Max discharging current | 1C | 1C | 1C | 1C | 1C | 0.5C | 0.33C | 0.33C |
Lifecycle | Capacity 80% after 2000 times lifecycle | |||||||
Weight | <8kg | <13kg | <17kg | <22.5kg | <28kg | <50kg | <70kg | <78kg |
尺寸(W*D*H)mm | 483*271*88mm | 483*385*95mm | 483*351*88mm | 480*400*90mm | 430*350*130mm | 483*420*222mm | 483*615*222mm | 483*498*288mm |
A battery backup allows you to store your energy for when you need it the most
lithium iron phosphate battery for outdoor/indoor use. For telecom power systems, energy storage, renewable energy and hybrid power ..Lithium-ion is a far more efficient battery and the Lithium-ion technology is cleaner, lasts longer and wastes less compared to the Lead-Acid Batteries. Lithium-ion is completely maintenance free and with a greater DOD (Depth Of Discharge) you will get up to 80% compared to Lead-Acid which is 50%.
