48v 200Ah 10.24kWh Stackable Energy Storage Battery

It is composed of high-quality lithium iron phosphate batteries (series and parallel) plus an advanced BMS battery management system. Usually classified as low voltage and high voltage, includes 24V, 48V, 51.2V， and so on，with wall mounted, cabinet rack, portable case suitable for your space

Quantity:

Overview

Compatible with multiple brand inverters

Cycle life > 6000 times, life up to 10 years

It can be installed in a cabinet in parallel to increase the battery capacity

Communication ports RS232, RS485, CAN

The battery is simple to connect with the inverter and easy to install

Power select appliances during a power outage.such as Power tools, lighting, RVs off-grid

Recharge from the Grid, Solar, Wind or other alternative sources.

Rugged Aluminum and Steel construction with Stainless Steel hardware

Communication Ports for MicroGrid integration.

Safety Breakers, Safety guard connectors for output power terminals.

Battery Charge Level, On/Off and Running Operation LED Indicator

Overcharge, Over voltage, High Temp and Over Current Protection

Automatic Capacity Preservation and switching between Constant Current and Constant Voltage charging.

Short Circuit Protection，Over Temperature Alarm

Specifications

Model		VDO48200	VDO48400	VDO48600
General Characteristics
Nominal voltage		51.2V	51.2V	51.2V
Nominal capacity 0.2C		200Ah	400Ah	600Ah
MIn.capacity 0.2C		194Ah	388Ah	582Ah
Nominal energy		10.24kWh	20.48kWh	30.72kWh
Dimensions(WDH)		600600850mm	6006001400mm	6006001800mm
Approx. weight(exclude cabinet)		105Kg	210Kg	315Kg
Multiple Battery Model		VDO48200	VDO48200*2	VDO48200*4
Battery connection		Parallel
Electrical Characteristics
Operating voltage range		42V~54V	42V~54V	42V~53.2V
Recommended charging voltage		52.5V~54V	52.5V~54V	52.5V~53.2V
Max. charging current		100A	200A	300A
charging current limit in parallel connection(switched ON)		20A	40A	60A
Max.continuous discharge current		100A	200A	300A
Max.peak discharge current		120A,<3S	250A,<3S	360A,<3S
Discharging cut-off voltage		44.8V	44.8V	44.8V
Faraday charging efficiency		≥98%
Energy charging efficiency		≥92%
Operating conditions
Operating temperature	Charge	0℃～50℃
	Discharge	－20℃～65℃
Storage temperature		－10℃～45℃
Storage duration		12Months @20℃~25℃
Safety standard		UL 1642 at cell level
Water dust resistance		IP55

Details

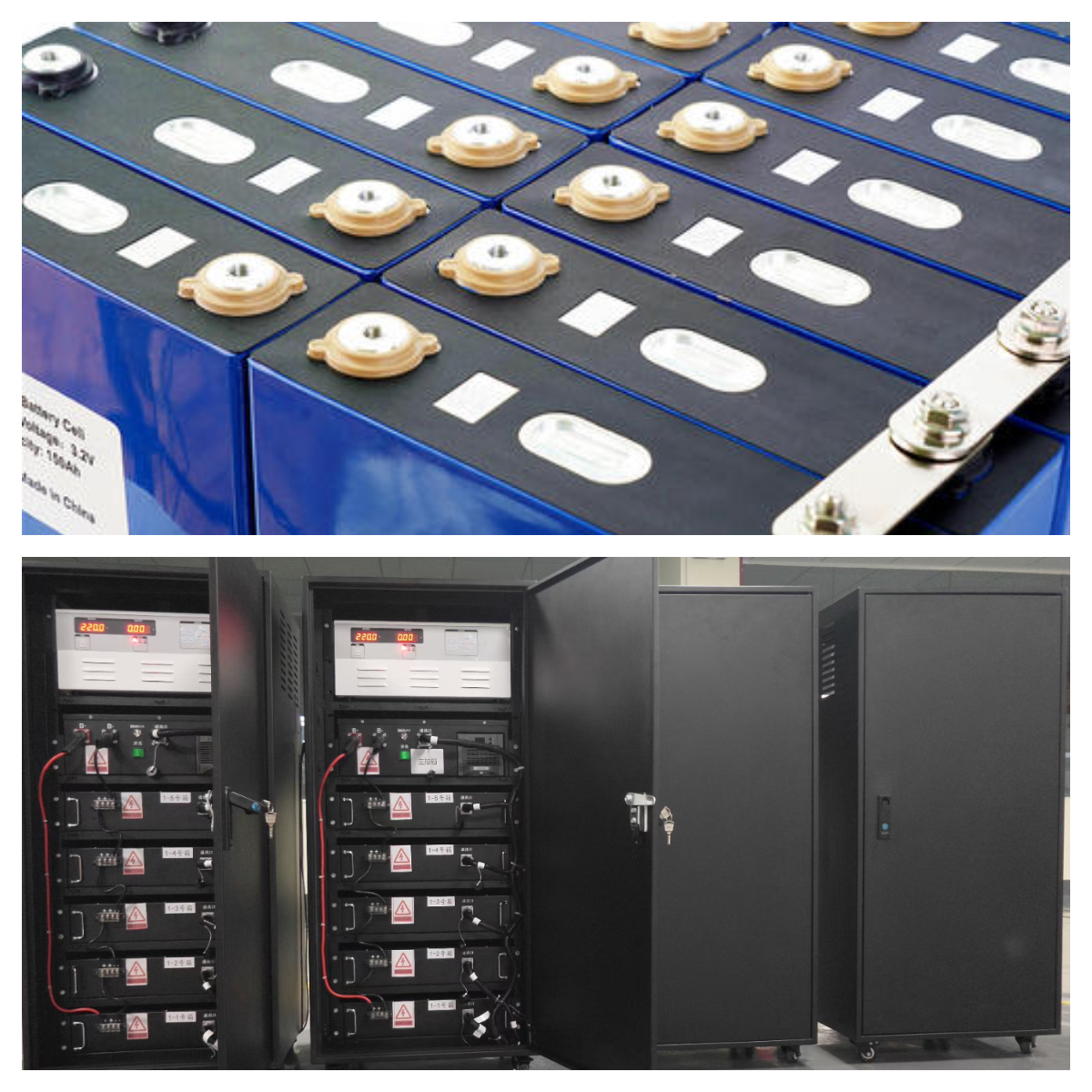

Energy Storage System is consisted of 16 pcs of 200 Ah LFP cell originated from China famous brand. They are connected in multi-parallel configurations in a battery cluster. The overall system also provides standard communication port, i.e. CAN and RS485, to monitor the working status and communicate with upper machine as well as the Power Conversion System (PCS) in front. 50kwh 100kwh can be combined as needed A single battery is 48v 200ah 10.24kwh. A whole cabinet is 5 batteries, a total of 51.2kwh,If without master control, it support max 5 parallels for highest 51.2Kwh battery system; If with standard master controls, it can be paralleled and serialed with more batteries.
