High Voltage 10KWH-40KWH Stacked Energy Storage System 256V 100Ah Lifepo4 Battery

It is composed of high-quality lithium iron phosphate batteries (series and parallel) plus an advanced BMS battery management system. Usually classified as low voltage and high voltage, includes 24V, 48V, 51.2V,409V and so on,with wall mounted, cabinet rack, portable case suitable for your space

Quantity:
Share this:

Electric bicycle

Electric motorcycle

Electric tricycle

Electric boat

Motorhome

Energy storage

RC toy

Led light

Street light

UPS

Medical Equipment

Robot

Overview

  • Scalable high-voltage battery pack
  • Our high voltage Series is a safe and versatile LFP battery solution.
  • The battery pack is compact (3U in height) and allows for multi-parallel configurations in a battery cluster.
  • The high voltage Series is suitable in a range of different application scenarios including:
  • PV/Wind power plant storage
  • Off-grid energy storage
  • Micro-grid applications
  • UPS power supply

Specifications

Output Power 25Kw
Rated voltage 256V
Rated Capacity 100AH
Continuous Discharge Current 100A
Peak Discharge Current 200A/10S
Standard Charging Current 50A
Fast Charge Current 100A
Number Of Expandable Batteries 5~ 15
Optional Capacity Range 10~40KWH
Cooling Method Self-Cooling
Battery Type Lithium Iron Phosphate
Use Period >15 Years@25°C
Cycle Life ≈6000 times
Battery Voltage Range 200V-290V (under voltage alarm / shutdown voltage / over voltage alarm / over voltage recovery... LCD screen can be set)
Warranty Battery (5 years) 丨Inverter (5 years)

Mechanical parameters

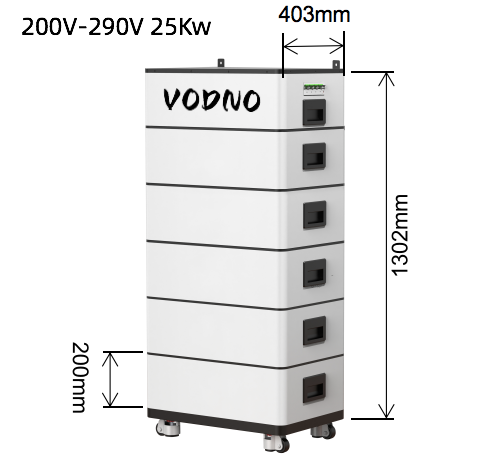

Battery Size/Weight 602*403*1302mm/300Kgs
Inverter power <25KW
Installation Method

Stacked

Environmental parameters

Storage Humidity Range ≤85%RH
operating Temperature 20°C~55°C
Recommended Operating Temperature 25°C
Waterproof IP21

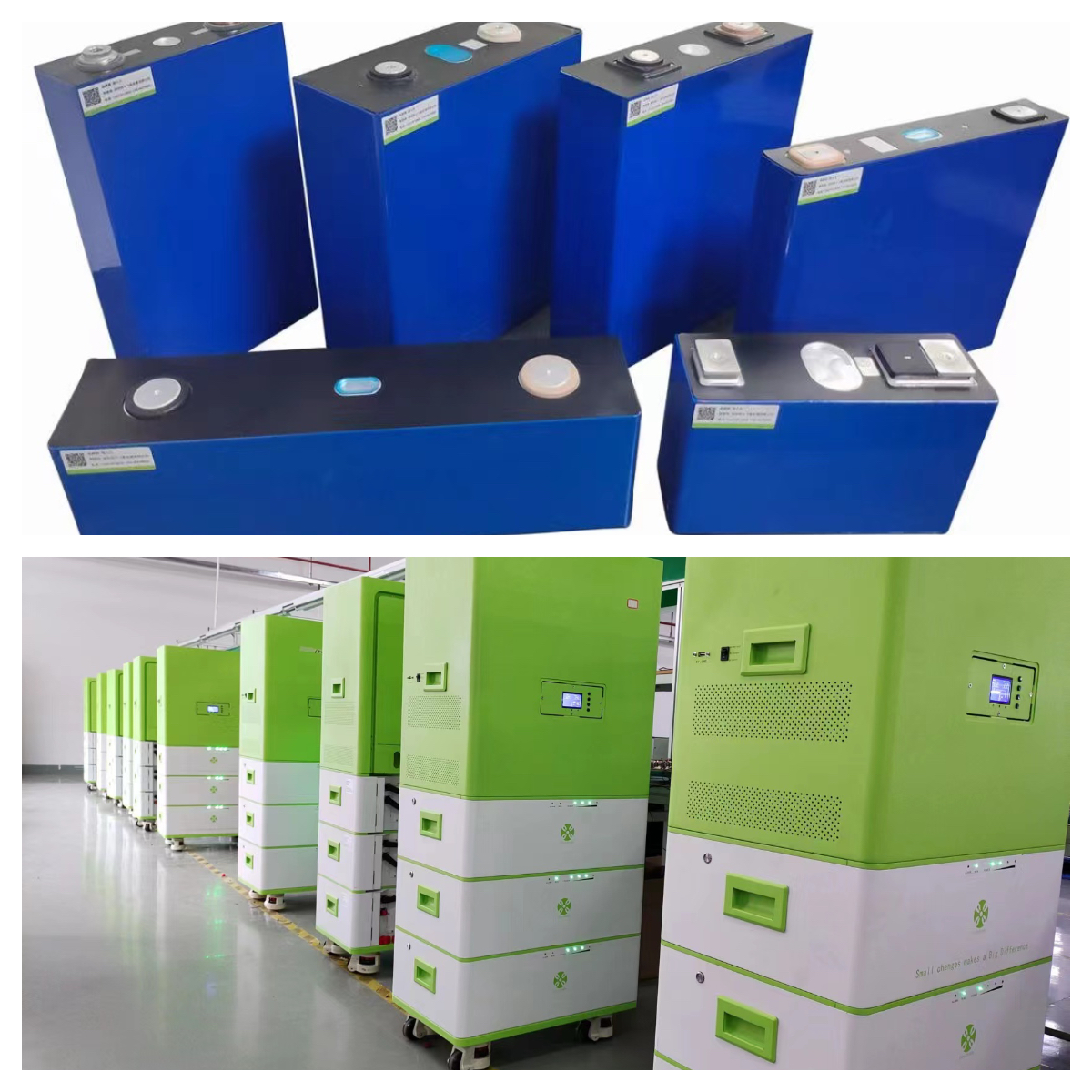

Detail



What is Your Application?Talk to us, Vodno Battery Experts will offer you a best solution
